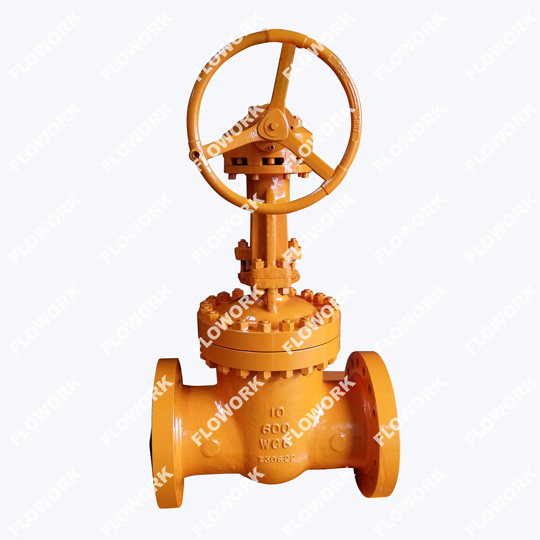

High Temperature Gate Valves

How Does a Parallel Slide Gate Valve Work?

A parallel slide gate valve is a type of gate valve that uses two parallel gates or disks that move in opposite directions to control the flow of fluid through the valve. When the valve is fully open, the two gates are fully retracted into the valve body, allowing the fluid to flow through the valve with minimal restriction, ball valve manufacture.

To close the valve, the two gates are moved simultaneously in opposite directions towards the center of the valve body. As the gates move towards each other, they create a parallel orifice that gradually reduces the flow of fluid through the valve. The two gates are designed to slide along the valve body guides, which keeps them aligned and prevents any interference with the flow of fluid.

One of the advantages of the parallel slide gate valve design is that it provides a tight seal even at low pressure differentials, which makes it suitable for applications where leakage must be kept to a minimum. Another advantage is that the parallel slide gate valve provides a linear flow characteristic, which means that the flow rate through the valve changes in proportion to the degree of valve opening, gate valve manufacture.

Parallel slide gate valves are commonly used in applications where precise flow control is required, such as in the oil and gas industry, power plants, and water treatment facilities. They are also used in applications where high pressure and temperature conditions are present, as the design of the valve can handle high pressures and temperatures without compromising its sealing ability.

Can Steam Eat Through a Gate Valve?

Steam is generally not corrosive to most gate valve materials, but it can cause erosion or cavitation damage to the valve trim if it is not properly designed for steam service.

When high-pressure steam flows through a gate valve, it can create turbulence and high-velocity flow conditions that can cause erosion or cavitation damage to the valve trim components, particularly the gate and seat. This can lead to leakage, decreased valve performance, and reduced service life, bronze valve.

To prevent erosion or cavitation damage in steam service, gate valves used in steam systems should be designed with a trim that is specifically rated for steam service. The trim may include materials that are resistant to high-velocity steam flow, such as hardened stainless steel or other alloys. In addition, the valve may need to be designed with special features, such as flow straightening vanes or a streamlined flow path, to minimize turbulence and velocity in the valve trim.

It's also important to ensure that gate valves used in steam systems are properly sized and installed to avoid excessive steam velocity or pressure drop across the valve, which can contribute to erosion or cavitation damage. Proper maintenance and inspection of the valve trim can also help to identify and address any erosion or damage before it becomes a problem, api 6d ball valve.

What Direction Does The Seat Go On Gate Valve?

The seat of a gate valve is typically installed with the raised portion facing the gate. This ensures that the gate is tightly sealed when it is closed against the seat, preventing any fluid from leaking through.

The seat can be either integral with the body or replaceable. In the case of a replaceable seat, it is usually held in place with screws or a snap ring. When installing a replaceable seat, it's important to make sure that it is seated properly and tightened securely to prevent any leaks, forged ball valve.

It's worth noting that the specific installation instructions may vary depending on the manufacturer and design of the gate valve. So it's always a good idea to consult the manufacturer's instructions or seek the guidance of a qualified technician if you are unsure about the proper installation of a gate valve seat.

What is Gate Valve Trim?

Gate valve trim refers to the internal components of a gate valve that come into contact with the fluid flowing through the valve. The trim includes the gate, seat, stem, and other internal components that are responsible for regulating the flow of fluid through the valve.

The type of trim used in a gate valve can vary depending on the specific application and the characteristics of the fluid being transported. For example, the trim material may need to be selected based on factors such as temperature, pressure, chemical compatibility, and abrasive properties of the fluid, carbon steel gate valves.

Common materials used for gate valve trim include stainless steel, brass, bronze, and other alloys. The trim components are typically manufactured to very precise tolerances to ensure that the valve operates smoothly and effectively.

The selection of the appropriate gate valve trim is an important consideration in the design and operation of a fluid control system. Choosing the right trim can help to ensure that the valve operates reliably and efficiently, with minimal risk of leakage or other problems.

What Is Stellite Seat Gate Valve?

A Stellite seat gate valve is a type of gate valve that uses a Stellite alloy for the valve seat. Stellite is a family of cobalt-based alloys that are known for their resistance to wear, corrosion, and high temperatures. Stellite is often used in applications where components are subjected to high stress or wear, such as in valves, pumps, and other industrial equipment, high temperature gate valves.
